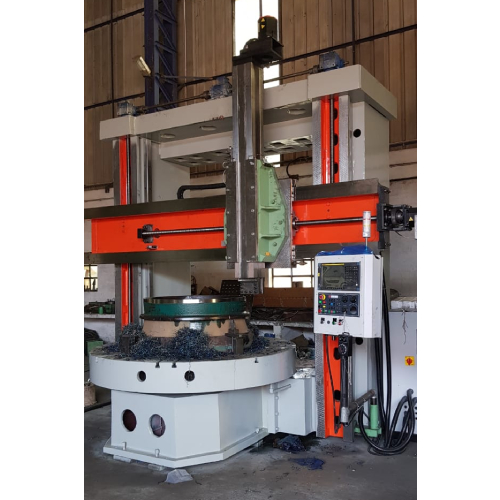

Cnc Vertical Turning Lathe Machine Manufacturers | Cnc Vtl Machine

With high-user output in mind, CNC Vertical Turning Lathe Machine features high torque drive for easing even the toughest cuts and machining a variety of products in different industries. Due to the advancement of products, the machine can assure superior and better vibration absorption along with noise-free cutting. Sarabsukh Enterprises is one of the prominent CNC Vertical Turning Lathe Machine Manufacturers in Batala, Punjab. From designing to manufacturing, our experts keep their keen eye on every detail and make sure that the final product come out is free from any flaws and will give value for money to the customers..

Table And Table Bed: The machine comes with a table bed made of cast iron and of heavily ribbed construction for handling smooth yet sturdy working of high-speed machines. Moreover, to provide support to the table, there are a large phosphorus bronze guideways that take the overall vertical load and stray tilting movements. The table comes with it can drive its rotation from a variable speed AC spindle motor through a gearing. However, the speed of the table can vary from 5-100 rpm, depends on the need of your application.

Column: Lathe Machines come with a proportioned column mounted on a bed and made of cast iron to prevent damage against corrosion has guideways at the front and at the side rear to guide the cross rail effectivel

Cross Rails: Another component that comes along with it is cross rails, made of cast iron, crosses vertically on the columns that help in setting the height for the workpiece. It is clamped to the desired position with the help of manual clamps. The working of the motor depends on the motor through gearing and lead screws

Tool Head: The cross rails, which are hardened and ground carries a saddle on its front guideways that provides the X-axis feed motion. The saddle of CNC Vertical Turning Lathe Machinery carries enclosed a square ram whose guiding surface is made of steel to prevent corrosion damage. For ensuring the superior frictional characteristics, Turcite – B lining is employed in the saddle. The horizontal feed motion is derived from AC servo motors coupled with BAL screws to the ram. Changing tools as per the need of the application can be done manually.

Lubrication: The table bearing and gear of the main drive transmission is lubricated by continuous circulation lubrication from a separate pump on the power pack. It comes with automatic intermittent lubrication for cross rail and Ram guideways along with BAL Screw nuts.

Cnc Vertical Turning Lathe Machine

Main Units Come With CNC Vertical Turning Lathe Machine:
